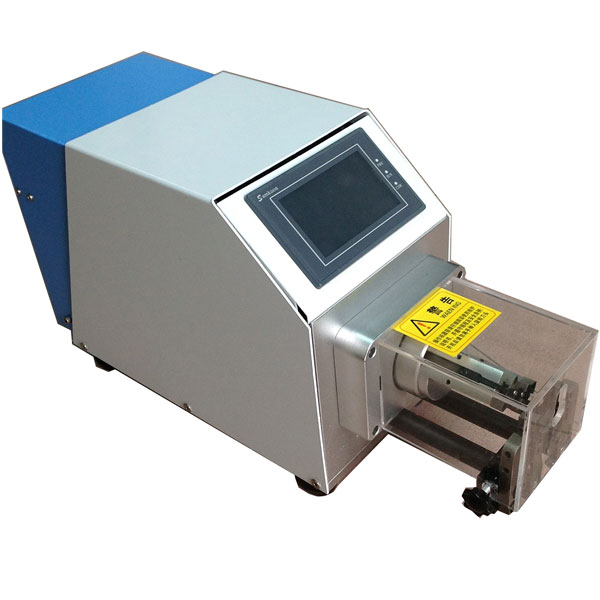

Coaxial Wire Stripping Machine 02TZ

* Cable Type: coaxial-cable,tri-axial cable,shield wire,rigid cable
* Max. Cable Dimater: 0.81-up to 6.99mm
* Cutting depth of the unit: 0.01mm
* Max. peeling length: 48mm
* Max. peeling stratums: 9
* Drive mode: Motor/ Ball screw drive(Japan)


Coaxial Wire Stripping Machine 02TZ


* It adopts the most advanced carbide tuming and accordingly improve the accuracy and speed.It is main used for the process of coaxial-cable and special single line.
* It adopts the axis positioning device and carbide tuming and can peel at most 9 stratums without changing the blade.Alao,it can equip with Set Controller and display the cutting diameter.

Technical Parameter

Name   02TZ  Coaxial Stripping Machine
Cable Type   coaxial-cable,tri-axial cable,shield wire,rigid cable
 Max. Cable Dimater  0.81-up to 6.99mm
 Cutting depth of the unit  0.01mm
 Max. peeling length  48mm
 Max. peeling stratums  9
 Drive mode  Motor/ Ball screw drive(Japan)
Display   Touch screen
 Blade  2 pieces    Material:imported tungsten steel(Switzerland)
Centering slab  2 pieces    Material:imported tungsten steel
Trapper  Automatic self aligning,motor drive, the clamping process control
Productivity  500-700pcs/h(depend on the cable length and type)
Opening way  Manual operation/Pedal
Power  220V/50Hz   380W
Weight  19Kg
Boundary dimension  525x186x278mm
Work environment  0-50°C,moderate dry,non-shake

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.


* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
