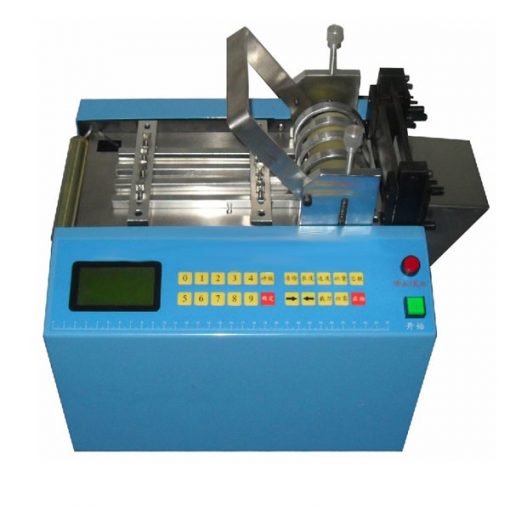

YM-10S Tube Cutting Machine

* Control Model: RAM control system
* Cutter: import SKD – 11 High speed steel
* Available Width: 0.1 ~ 100 mm
* Available Length: 1 ~ 100m
* Speed: 150 pcs/min
* Accuracy: ± 0.1mm

Description

Specification

* Model: YM-10S
* Control Model: RAM control system
* Cutter: import SKD – 11 High speed steel
* Available Width: 0.1 ~ 100 mm
* Available Length: 1 ~ 100m
* Speed: 150 pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 500W
* Measurement: (L)360×(W)300×(H)350mm
* Weight : 30 Kg
* Display: LCD
* Operation Language: English or Chinese

Feature

* High speed: It can cut 150 cut per minute. (50mm long) Cutter speed adjustable.
* Electric operation: It works electrically only by setting length and quantity
* Arbitrary length and speed continuously adjustable
* Automatic grouping accrued and total cumulative count
* Batch pause and delay time can be set
* Lack of material automatic shutdown, unattended
* Can cut a variety of automatic cutting tubular strip material;
* High-speed stepper motor precisely controlled pipe cutting & tape length; tape length, speed adjustable;
* With LCD screen display,it is simple and convenient to operate.
* This machine can be used to automatically cut any kinds of tubular, ribbon, thread-like material
* Cutter time protection; total set; points to set; points to pause time adjustable;
* Available in a variety of manual operation, convenient debugging;
* LCD large screen visual display, operation simple and convenient;
* Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.
* This machine changed a cutter mould .It can cut different tube.

Application:

* All kinds of Metal strap, Nickel strap, Solar energy welding strap, Plastic and Rubber strips ,Woven ribbon, Tape, Label Paper and other banding material of cutting , belt loop, ect.
* All kinds of Silicone tube,Plastic Tube, Medical tube ,Yellow wax tube.

YM-10S Tube Cutting Machine
