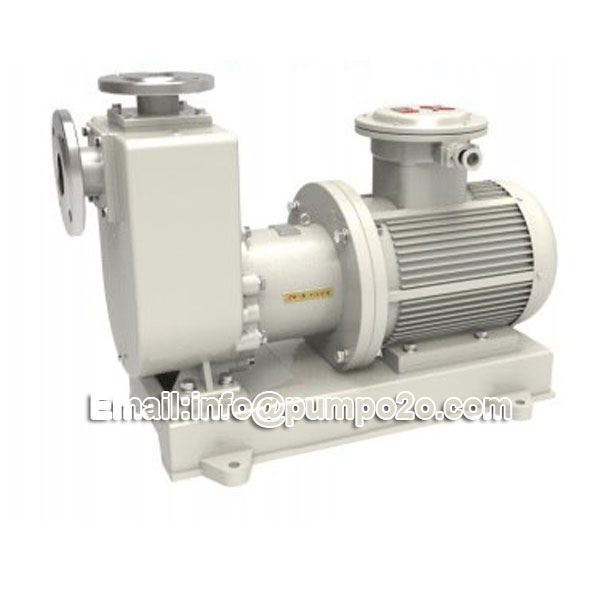

1.YMZ no-leakage magnetic self priming pump is the combination of no-leakage magnetic driven pump and self-priming centrifugal pump. It is a new type magnetic driven pump with characteristics of full sealing, no leakage, no pollution and strong self-priming, which is designed voluntarily by us.
2.The flowing-passed components like pump body, impeller, pump cover are entirely pressed and sintered of fluoroplastic (PTFE, FEP, PFA) covering metal insert.
3.New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
4.Shaft sleeve, slide bearing are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
5.Enclosed static seal completely solves the problem of dielectric leakage.The design of self-priming and gas-liquid mixture has strong function of self-priming, the height can reach 4 meters. No need of independent lubrication and cooling water, reducing energy consumption.Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
6.No contact and no friction, change coupling transmission to synchronic pulling. Power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitations vibration when the impact of the motor.
Application:Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids, etc.
Performance range：design pressure：1.6Mpa、flow:2-200m3/h、head：12-125m、power：1.1-110kw
Applicable temperature: -30～120℃, can be up to 350℃ if using new type material.
Optional accessories： monitoring of temperature device, monitoring of leakage device, preventive idling running device.
NOTES: Please indicate during ordering if the proportion of medium is larger than 1.3mg/cm3. No idling running. No delivering medium with particles or crystalline.
