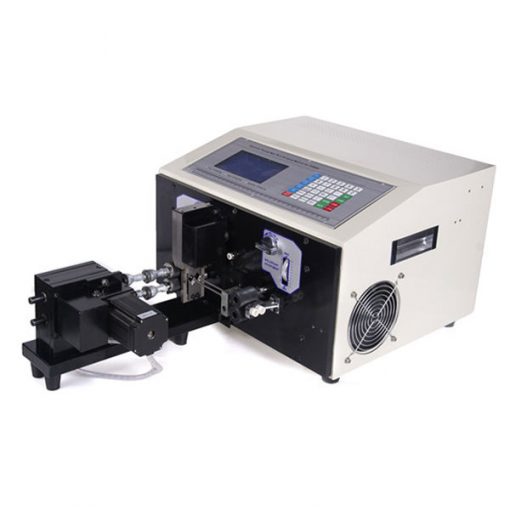

* Model: jst02T
* Wire Gauge Range: AWG16 ~ AWG32
* Memory Function: Max. 99
* Power Supply: 220V / 50Hz
* Power Rating: 300W
* Display Way: LED Display
* Wire Size: AWG16-32
* Fitting Wire Section Acreage(Single Pipe): 0.1mm²-4.5mm²
* Fitting Wire Section Acreage(Double Pipe): 0.1mm²-2.5mm²
* Guide Pipe Diameter(Wire DIA.): Φ6mm (Double Pipe)
* Twisting length: Head: 0.1-30mm, Tail: 0.1-20mm
* Stripping Length: Head: 0.1-30mm, Tail: 0.1-20mm
* Cutting Length: 0.1-10m
* Cutting Tolerance: ±(0.002×L) (L=Cutting Length)
* Exhausted Line Way: Complete Half Brief Middle
* Processing Capacity: 15000pcs/hour
* Fitting Wire Material: PVC Teflon Glass Wire
* Drive Way: Four Wheel Drive At The Same Time
* Speed Adjustment: 1-9
* Wire Diameter Adjustment: Automation
* Twisting Way: Both sides or one side
* Max. Middle Stripping Section: 16
* Parameter Memory Function: Can save 99 kinds of different wires
* Blade Material: Hard tungsten steel
* Mearsurement: 500*520*360mm
* Net Weight: 42Kg
* Pacakage: Export standard package
* This machine can strip, cut and twist multi-core wire full automatically!
* Twiting two wires at the same time!
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
