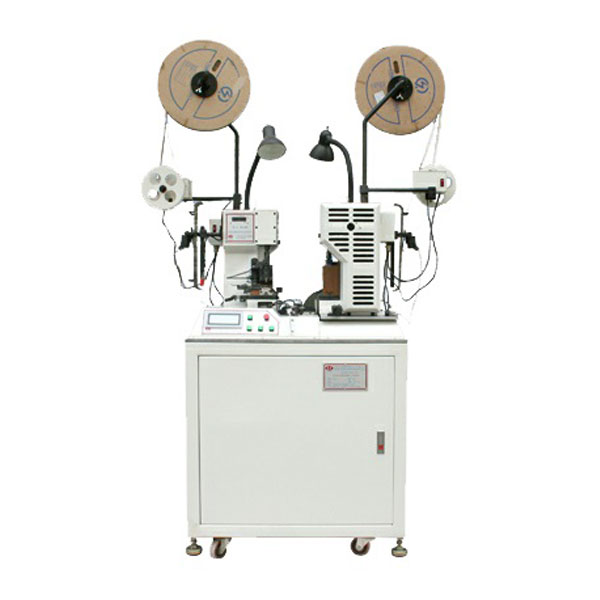

JST4000F Double-head Terminal Crimp Machine

* Capacity: 3500 strip/h (within 300mm length)
* Wire Processing range: AWG # 32 – AWG # 18
* Cutting length: 30mm-9999mm. Replacing some parts can cut to 35mm(shortest)
* Wire length: 35mm-8000mm
* Cutting fine: Change range:1mm+ below cutting length 0.1%)
* stripping length: 0.1mm-10mm
* Pressure capacity: 1.25T
* Twisting length: AWG # 20-AWG # 30 (4mm-8mm)


JST4000F Double-head Terminal Crimp Machine


wire selected length cutting, both ends stripping, crimping, cutting depth and stripping length automatic setting and both ends half stripping. Transmission by electric motor reduces press air consumption. Suitable choice for motor bicycle, household appliances wiring harness process industry.

Technical parameters

Type  Automatic computer Double head terminal crimping machine jst4000F
Power  AC220V 50 / 60HZ ( single phase )
Function  Wire cutting, both side stripping, single side stripping, single side crimping. Double side crimping
Capacity  3500 strip/h (within 300mm length)
Wire Processing range  AWG # 32 – AWG # 18
Cutting length  30mm-9999mm. Replacing some parts can cut to 35mm(shortest)
Wire length  35mm-8000mm
Cutting fine  Change range:1mm+ below cutting length 0.1%)
 stripping length  0.1mm-10mm
 Air pressure  0.5Mpa(5kgf/cm) About 200NL/Min
Detection device  It will alarm downtime when appears lack of abnormal, insufficient air pressure.
 Pressure capacity  1.25T
 Twisting length  AWG # 20-AWG # 30 (4mm-8mm)
 Machine size  670 W* 840L * 1500 H(mm)
 Machine weight  About 350kg

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.


* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
