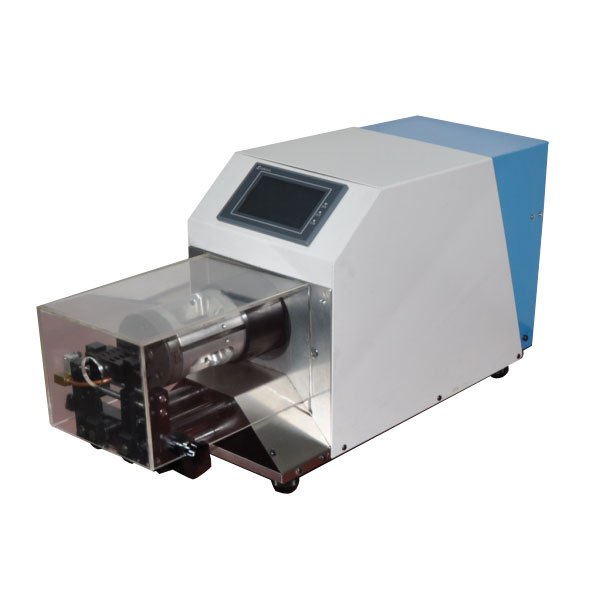

Coaxial Wire Stripping Machine 04TZ

*  Max. Cable Dimater:0.2-up to 6.99mm
* Cutting depth of the unit:0.01mm
* Max. peeling length:48mm
* Drive mode:Motor/ Ball screw drive(Japan)
*  Centering slab:2 pieces    Material:imported tungsten steel
* Opening way:Manual operation/Pedal


Coaxial Wire Stripping Machine 04TZ


Coaxial wire stripping machine
Max Cable Diameter 0.2-6.99mm
Cutting depth 0.01mm
Max Peeling length 48mm
Easy operate


It adopts the most advanced carbide tuming and accordingly improve the accuracy and speed.It is main used for the process of coaxial-cable and special single line.
It adopts the axis positioning device and carbide tuming and can peel at most 9 stratums without changing the blade.Alao,it can equip with Set Controller and display the cutting diameter.

Technical Parameter:

Name 04TZ Coaxial Stripping Machine
Cable Type coaxial-cable,tri-axial cable,shield wire,rigid cable
Max. Cable Dimater 0.2-up to 6.99mm
Cutting depth of the unit 0.01mm
Max. peeling length 48mm
Max. peeling stratums 9
Drive mode Motor/ Ball screw drive(Japan)
Display Touch screen
Blade 2 pieces   Material:imported tungsten steel(Switzerland)
Centering slab 2 pieces    Material:imported tungsten steel
Trapper Automatic self aligning,motor drive, the clamping process control
Productivity 500-700pcs/h(depend on the cable length and type)
Opening way Manual operation/Pedal
Power 220V/50Hz   380W
Weight 19Kg
Boundary dimension 525x186x278mm
Work environment 0-45°C,moderate dry,non-shake

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.


* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
