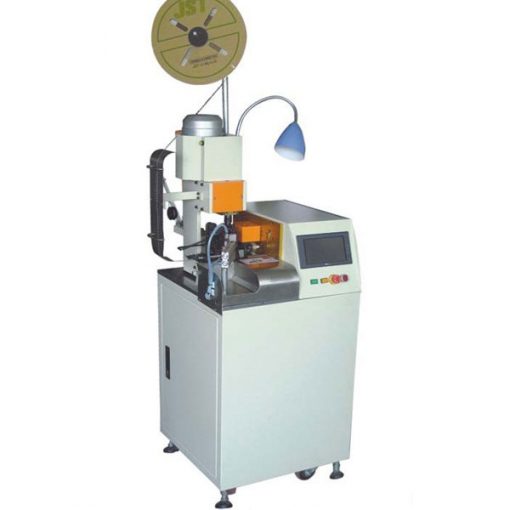

Single-head Wire Stripping & Terminal Crimping Machine YM-2000F

* Function: Wire cutting, both side stripping, single side stripping, single side crimping.
* Capacity: 4500 strip/h (within 300mm length)
* Speed: >3000pcs/hours
* Wire Processing range: AWG # 30 – AWG # 20
* Wire Length: 35mm-8m
* Cutting length: 28mm-9999mm. Replacing some parts can cut to 25mm(shortest)
* Cutting fine: Change range:1mm+ below cutting length 0.1%)
* stripping length: 0.1mm-10mm


Technical parameters

Type  Automatic computer single head terminal crimping machine jst2000F
Power  AC220V 50 / 60HZ ( single phase )
Function  Wire cutting, both side stripping, single side stripping, single side crimping.
Capacity  4500 strip/h (within 300mm length)
Speed  >3000pcs/hours
Wire Processing range  AWG # 30 – AWG # 20
Wire Length  35mm-8m
Cutting length  28mm-9999mm. Replacing some parts can cut to 25mm(shortest)
 Cutting fine  Change range:1mm+ below cutting length 0.1%)
 stripping length  0.1mm-10mm
 Air pressure  0.5Mpa(5kgf/cm) About 200NL/Min
 Detection device  It will alarm downtime when appears lack of abnormal, insufficient air pressure.
 Pressure capacity  19600N(2T)
 Twisting length  AWG # 20-AWG # 30 (4mm-8mm)
 Machine size  80 * 80 * 170(mm)
 Machine weight  About 130kg


* This machine is composed by Mitsubishi controller from Japan, high precision, stable performance.
* Using 256 colors color touch screen, full Chinese menu, PLC control.
* Terminal crimping use Japanese motor mute terminal machine. No noise, low fault..
* Equipment is mainly made of original imported parts, complete severing the wire, stripping, terminal crimping dynamic is precision, simple operation, stable performance.
* Wire pressing roller tightness adjustable, cutter depth adopt spinner rotation adjustment, simple and quick.
* Full stripping length directly set by the touch screen Chinese menu panel setting. The best characteristics: Technology operation performance adjustment fast, short adjusting time, simple operation.

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.


* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
