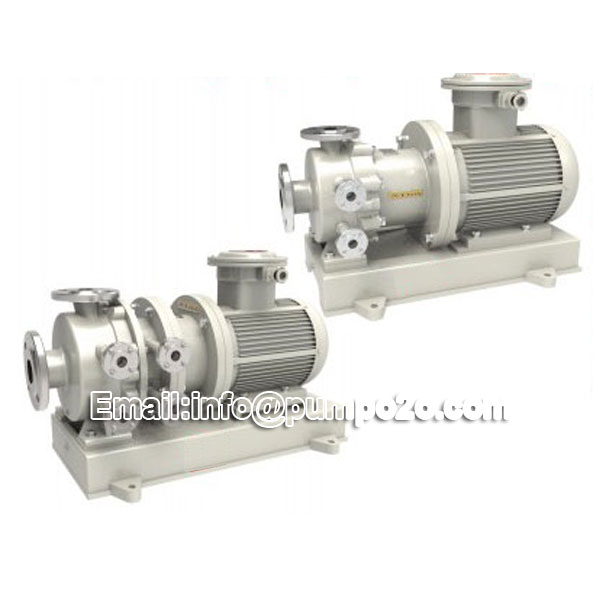

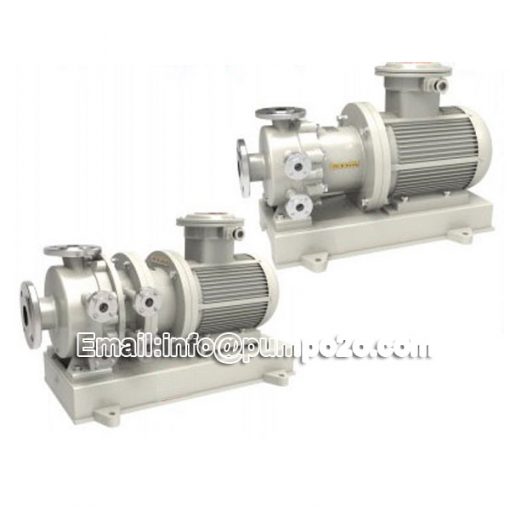

1 . YMG(B)TC non- leakage magnetic driven pump is a new type magnetic driven pump with characteristics of full sealing, no leakage, no pollution, which is designed voluntarily by us.
2. The flowing- passed components like pump body, inner rotor, pump cover, impeller, distance sleeve, etc, are all made of superior stainless steel or special materials.
2. 1 The pump body and cover of magnetic high- temperature pump have two- ply cooling equipment ( No cooling equipment in air- cooled pump) , be allowed use water or nitrogen to cool medium in hightemperature
pump, ensures medium keep cool in pump body.
2. 2 The pump body and cover of magnetic heat pump have two- ply heat equipment, be allowed use steam to heat medium in heat pump, ensures medium won’t condense, crystallize or gasify during delivering.
3. New type permanent magnet with good magnetism, high temperature resistant and No demagnetization is selected.
4. Shaft sleeve, slide bearings are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the
pump’s working life.
Application：Widely applied to many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio,
formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids,
Performance range： design pressure： 1.6Mpa、 flow： 2-200m3/h、 head： 12-125m、 power： 1.1-132kw；
Applicable temperature：- 30～120℃, can be up to 350℃ if using new type material.
Optional accessories：monitoring of temperature device, preventive idling running device, monitoring of leakage device.
NOTES: Please indicate during ordering if the proportion of medium is larger than 1.3mg/cm3.No idling running. No delivering medium with particles or crystalline.
