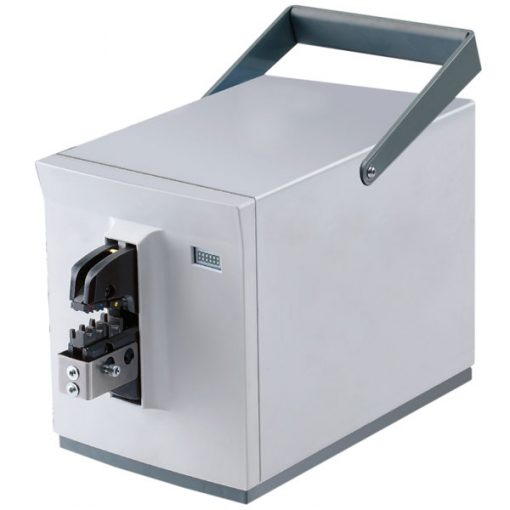

Eletrical Terminal Crimping Machine 601E

* Crimping range: 0.5-16mm²
* Output:2.5T
* Voltage range: AC 220V
* Weight: 10kg
* Overall dimension: 140*220*320mm

Description

Eletrical Terminal Crimping Machine 601E

Specification

* Crimping range: 0.5-16mm²
* Output:2.5T
* Voltage range: AC 220V
* Weight: 10kg
* Overall dimension: 140*220*320mm

Benefits

* Automates your hand tools
* Eliminates operator hand faigue-foot pedal controls the unit
* Low cost alternative to automatic crimping machines
* 10 time faster than manual cirmping
* Multi-funtion operations
* Portable and lightweight
* Small bench top footprint

1. Connect foot perdal to the foot pedal joint
2. Connect the attaching plug to the power supply
3. Connect the grounding plug to the power supply
4. Turn on power switch

Picture one

1. Screw off the phillips screws
2. Remove the protection cover

Picture two

1.Embed the lower die
2.Screw on the phillips screws
3.Embed the top die
4.Screw on the phillips screws

Picture three

1. Imbed the cable into the cable connector
2. Step down the foot pedal
3.Until crimping dies are closed completely
4. The crimping dies are automatically opened
5. Loosen the foot pedal
6. Take down the well-crimped cable joint

1. Pre-plug 2-in-one insulation and crimping dies
2. Coaxial crimping dies
3. Small brass crimping dies
4. Pre-Insulated Terminals crimping dies

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.

Service

* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
